High Performance Industrial Vibration Sensor General Purpose Accelerometer Non Rusting

Name: High Performance Industrial Vibration Sensor General Purpose Accelerometer Non Rusting
Brand: Wilcoxon
Price: 1 USD

Brand Name : Wilcoxon

Model Number : Model 797

Certification : CE

Place of Origin : USA

MOQ : 1 set

Price : negotiated sale

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000 set/year

Delivery Time : 10-60days

Packaging Details : Standard

Wilcoxon model : Model 797

Sensitivity : 100 mV/g

Sensitivity tolerance : ±5%

Frequency response ± 3 dB, Hz : Dynamic vibration (IEPE)

Resonance frequency : 1 Hz - 12,000 Hz

Max temperature : 120°C

Bias output voltage : Bias output voltage

Temperature sensor output sensitivity : 10 mV/°C

Grounding : case isolated

Mounting : 1/4-28 tapped hole

Output connector : MIL-C-5015, 2-pin

Compliance : CE •[CSA/ATEX/IECEx]

Contact Now

High performance general purpose accelerometer, 100 mV/g; IEPE accelerometer,±5% sensitivity tolerance

High performance general purpose accelerometer, 100 mV/g

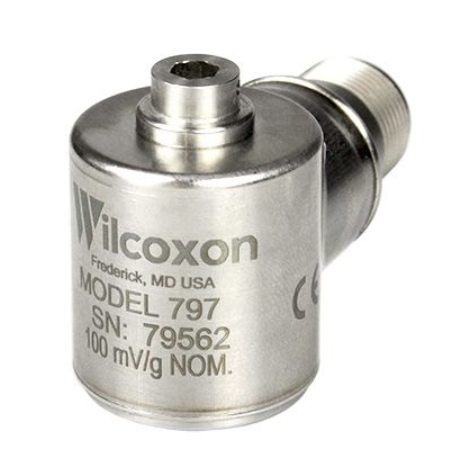

High Performance Industrial Vibration Sensor General Purpose Accelerometer Non Rusting

Model 797

High-performance, general purpose, IEPE accelerometer, 100 mV/g sensitivity, ±5% sensitivity tolerance, wide frequency response, low profile with side exit 2-pin MIL-C-5015-style connector

IEPE accelerometer features

Industrial ruggedness
Hermetic seal
Hazardous area certified and radiation-resistant versions available

Included accessories

1/4-28 captive screw

Specifications

PARAMETER	VALUE
Sensor output	Dynamic vibration (IEPE)
Sensitivity	100 mV/g
Sensitivity tolerance	±5 %
Frequency response, ±3dB	1 Hz - 12,000 Hz
Mounting Thread	1/4-28 captive socket head screw
Connector style	MIL-C-5015, 2-pin
Connector orientation	Side exit
Full-scale range	80 g peak
Resonance frequency	26 kHz
Temperature range	-50°C to +120°C
Weight	138 grams
Hazardous area approvals	Non-approved; approved models available
